Adjustments from P1 loadbalancing to SlimmeRik control#

This manual provides instructions to allow existing Alfen chargers, who are now controlled by a third party, to be configured as a SlimmeRik controlled Alfen charger. Currently supported models are:

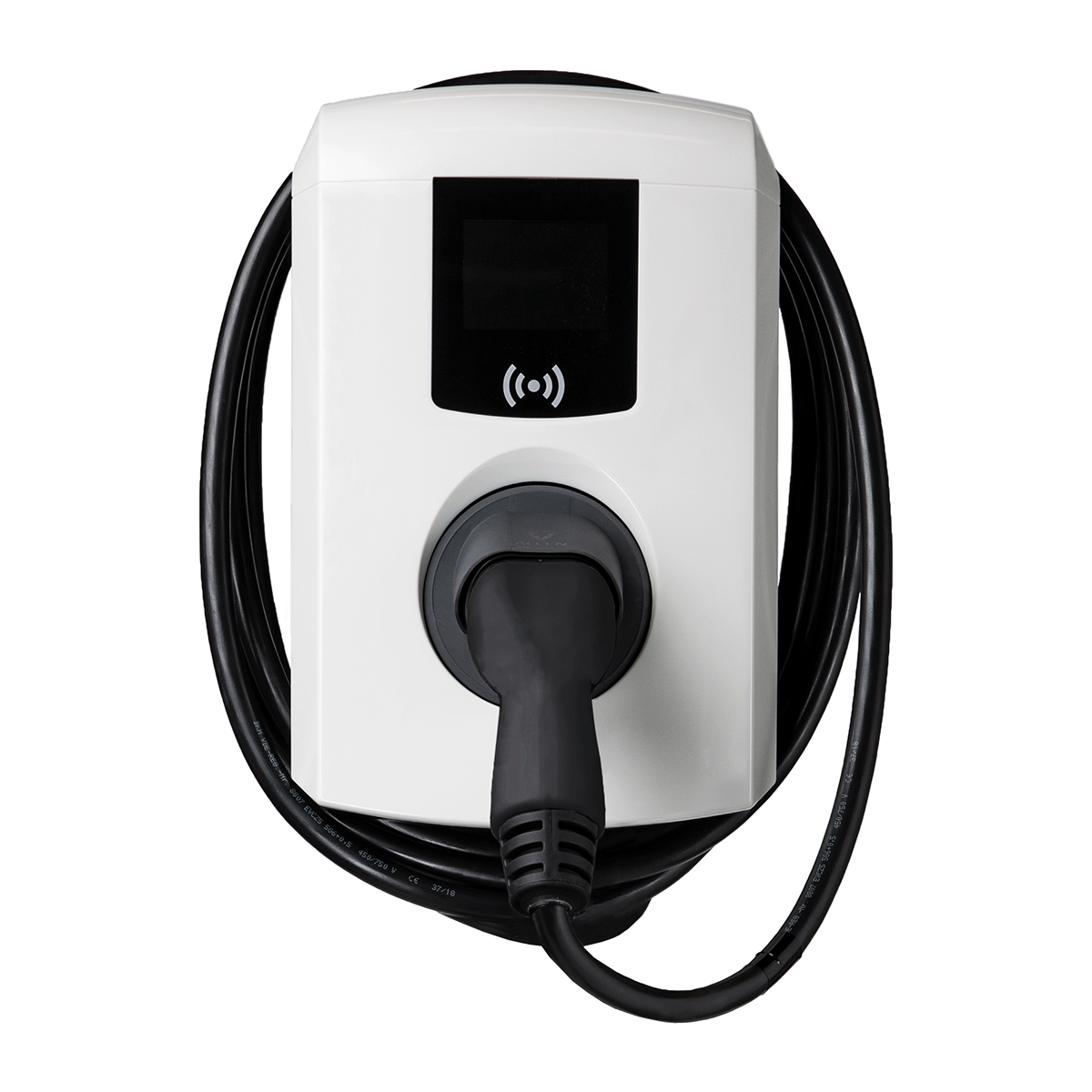

../../_images/alfen_pro_line.png

Pro-Line
../../_images/pro_line_double.jpg

Pro-Line Double Socket

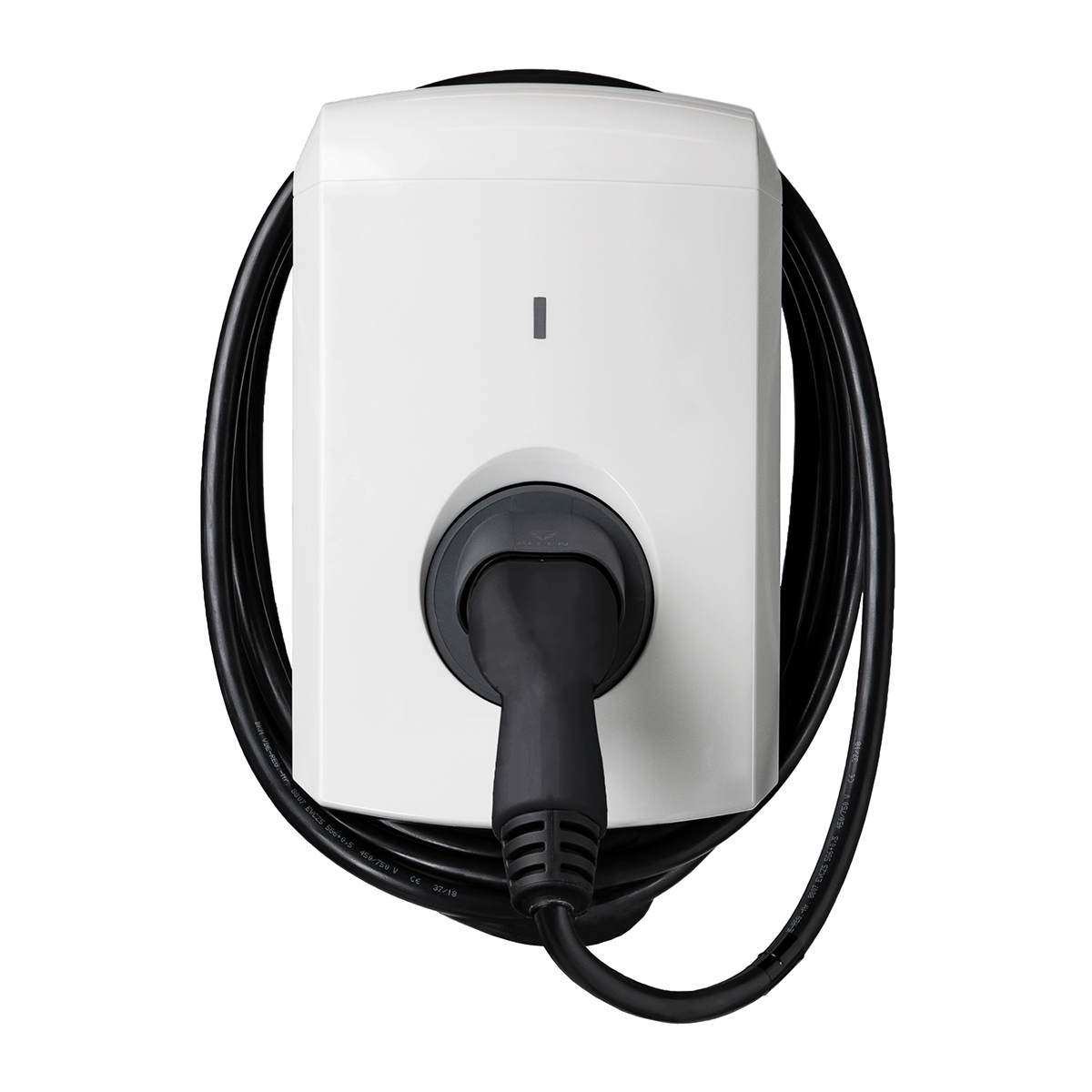

../../_images/alfen_s_line.png

S-Line

In these specific situations the Alfen charger was already installed at the customer and Alfen’s loadbalancing is done via the P1 port of the digital meter. The charger is physically connected by UTP to the digital meter. This connection is no longer necessary. Loadbalancing will be managed by Sunergy through the connection between SlimmeRik and digital meter. For SlimmeRik to control the charger, the charger needs to be connected to the local network. A new UTP cable has to be installed between the Alfen charger and router.

In case of digital meter and router being in the same area, the existing UTP can be re-used by changing the connector from RJ11 (digital meter) to RJ45 (router).

Configuration of SlimmeRik requires that the modbus communication is enabled in each individual charger’s settings, the procedure can be executed locally (via MyEve app or ACE Service Installer) or remotely (via Backoffice).

For details on potential issues, check the Alfen Troubleshooting Guide.

Attention

The ethernet cable can be connected in the following way:

../../_images/alfen_ethernet_connection.png

Useful Resources#

Alfen Single S-Line and Pro-Line Installation and User Manual: pdf

Alfen Smart Charging Implementation Guide: pdf
