SUN2000-L (1ph)

The Huawei SUN2000-KTL-L1 inverters can be connected to the SlimmeRik in two different ways:

• RS485 – Modbus RTU (Prefered)

  The connection is made by a twisted pair cable connected between the SlimmeRik RS485 dongle and the inverter COM connector terminals. For this type of connection follow Modbus RTU Setup guide on section 1.

  Attention

  This type of connection is only possible when a Huawei WLAN-FE Smart Dongle IS NOT connected to the inverter.

• Ethernet – Modbus TCP

  The connection is made using the local area network, no additional wiring is needed. For this type of connection follow the “Modbus TCP setup” guide on section 2.

  Attention

  This type of connection is only possible when a Huawei WLAN-FE Smart Dongle IS connected to the inverter, and the inverter built in wifi antenna is unplugged.

1. Modbus RTU setup

1. Power off the inverter

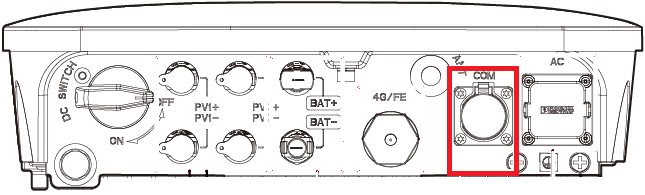

2. Unplug the COM connector identified in the following image

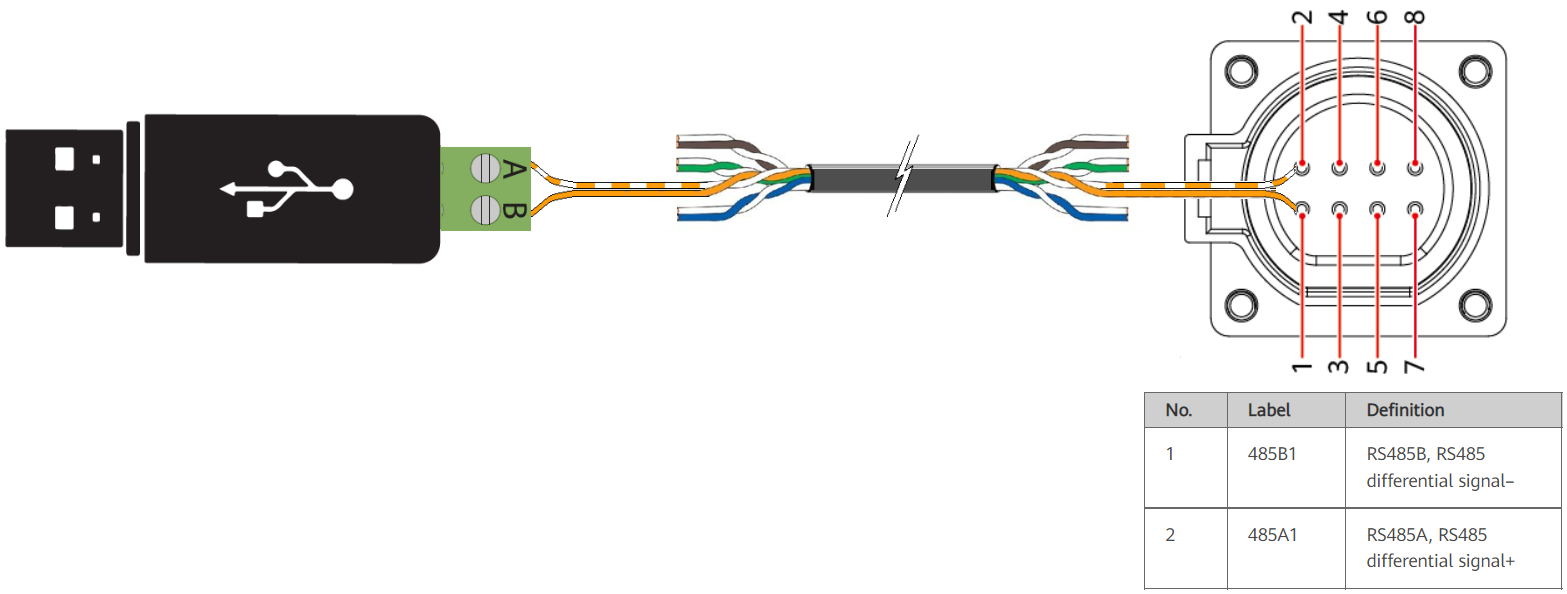

3. Connect a twisted pair cable between the RS485 Dongle and the terminals 1 and 2 like in the following schematic



4. Plug the connector back and power on the inverter

5. The inverter will be detected in the next 5 minutes by the SlimmeRik, if that’s not the case, check if the RS485 Modbus settings are correctly configured on the inverter:

   Connect the SUN2000 app to the inverter Wi-Fi hotspot and on the home page select:

   Settings >> Communication configuration >> RS485_1


   The settings should be:

   Baud rate = 9600, Protocol type = Modbus, Com address = 1, Bus frame capture = 1


2. Modbus TCP setup

Important

This type of connection is only possible if a Huawei WLAN-FE Smart Dongle is plugged to the inverter and the inverter built in wifi antenna is disconnected.

1. Open the Huawei SUN2000 app

   Download the app

2. Connect the SUN2000 APP to the inverter Wi-Fi hotspot

   Select manual connection and follow the steps, use the default password “Changeme” for the first login

   Attention

   Turn off the phone mobile data or else the inverter will not be found by the app.



3. Log in to the inverter

   Select installer, and enter the correct password, which defaults to “00000a”

   Attention

   If the password is not the default one, you can reset it by following the Manufactor guide. Be sure to get the owner authorization prior to do it.

Manufactor guide for password reset

4. Enable Modbus

   On the home page, select:

   Settings >> Communication configuration >> Dongle parameter settings >> Modbus-TCP >> Enable (unrestricted)

5. The inverter will be detected in the next 5 minutes by the SlimmeRik, if that’s not the case, check if the inverter and dongle firmware versions are at the minimum required:

Ensure that the firmware versions for inverter and dongle are at least the following:

Huawei firmware versions

Device	Minimum Version Number
SDongle-05	V100R001C00SPC127
SUN2000L	V200R001C00SPC115
SUN2000MA	V100R001C00SPC139

• Check the inverter firmware version

  Connect the SUN2000 app to the inverter Wi-Fi hotspot and in the home page select:

  Maintenance >> Upgrade device >> Current version

  If a firmware upgrade is necessary, connect the inverter to the internet, and then, on the same screen, pick the package that appears on the list.

• Check the dongle firmware Version

  Connect the SUN2000 app to the dongle Wi-Fi hotspot, enabled on the first 3 minutes after power on (same steps has connecting to the inverter but choose dongle instead), and on the home page select:

  Maintenance >> Upgrade device >> Current version

  If needed you can upgrade the dongle firmware by selecting:

  Upgrade >> Manually

  If a firmware update is necessary, download the most recent dongle firmware to your smartphone using the next link

  Attention

  This step is only available using the android app

  SDongle_V100R001C00SPC127_package.zip

  and then pick the file from your smartphone filesystem and follow the app steps.
