Victron Energy integration guide#

1. Modbus support#

The devices with GX built-in, Cerbo GX, Venus GX and CCGX models support modbus TCP connections and are required for communication and measurements. By default the modbus connection is disabled and has to be enabled on the GX user interface. This can either be done usint the physical console or the Remote Console using the VRM App.


Enable Modbus TCP:#

1.1 Select the down (˅) arrow#

../../_images/gxHome.jpg

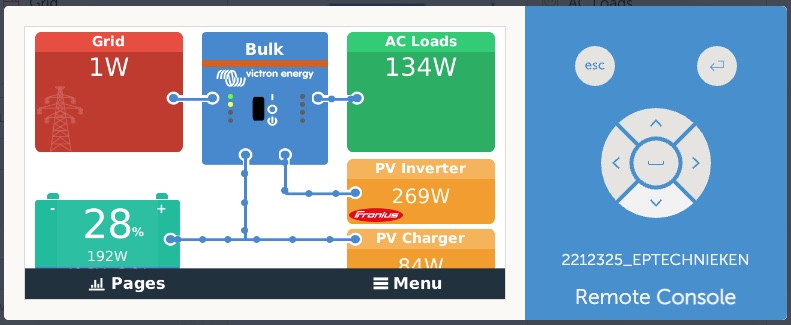

1.2 Select Menu#

../../_images/gxHomeMenu.jpg

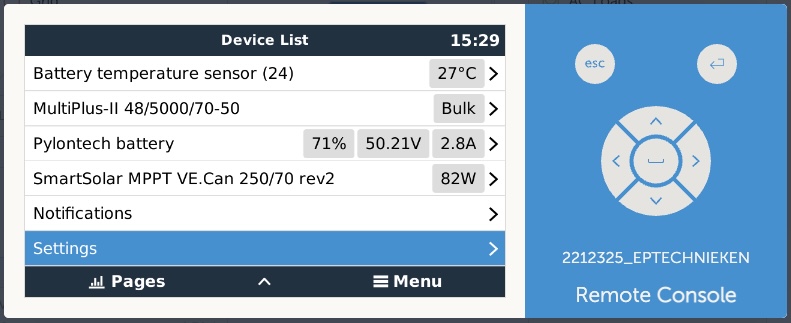

1.3 Select Settings#

../../_images/gxDeviceList.jpg

Note

Installed hardware may vary.

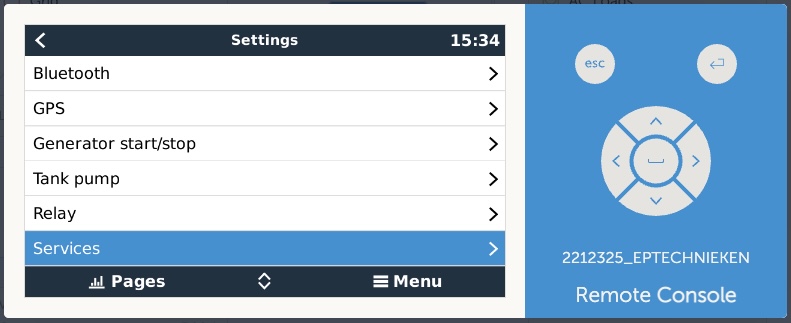

1.4 Scroll down and select Services#

../../_images/gxSettings.jpg

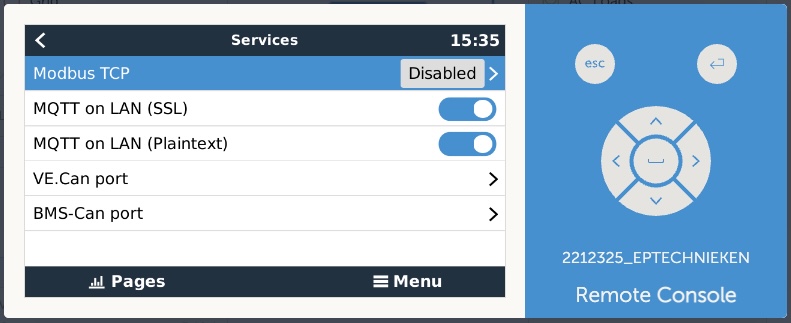

1.5 Select Modbus TCP#

../../_images/gxServices.jpg

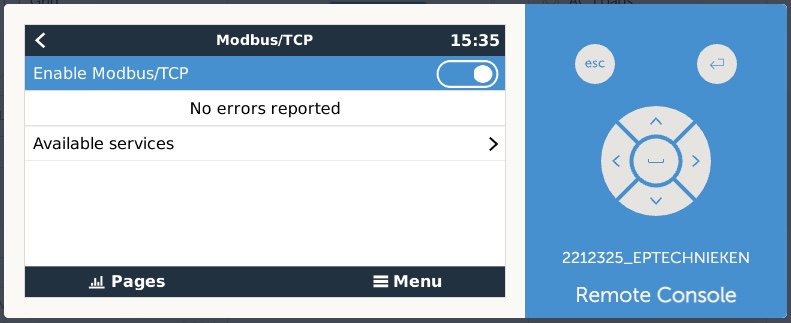

1.6 Toggle Modbus/TCP to on#

../../_images/gxModbus.jpg

2. Brand documents#
